Look-C Self-Contained Door Entry Access Control RFID Compatible with Fail-Safe Fail-secure Electric locks
Regular price
$86.90
Sale
$96.95
SELF-CONTAINED ACCESS CONTROL RFID 125KHZ
RFID Master Unit
STAND-ALONE DOOR ENTRY SOLUTION FOR FAIL-SAFE/FAIL-SECURE DOOR STRIKES

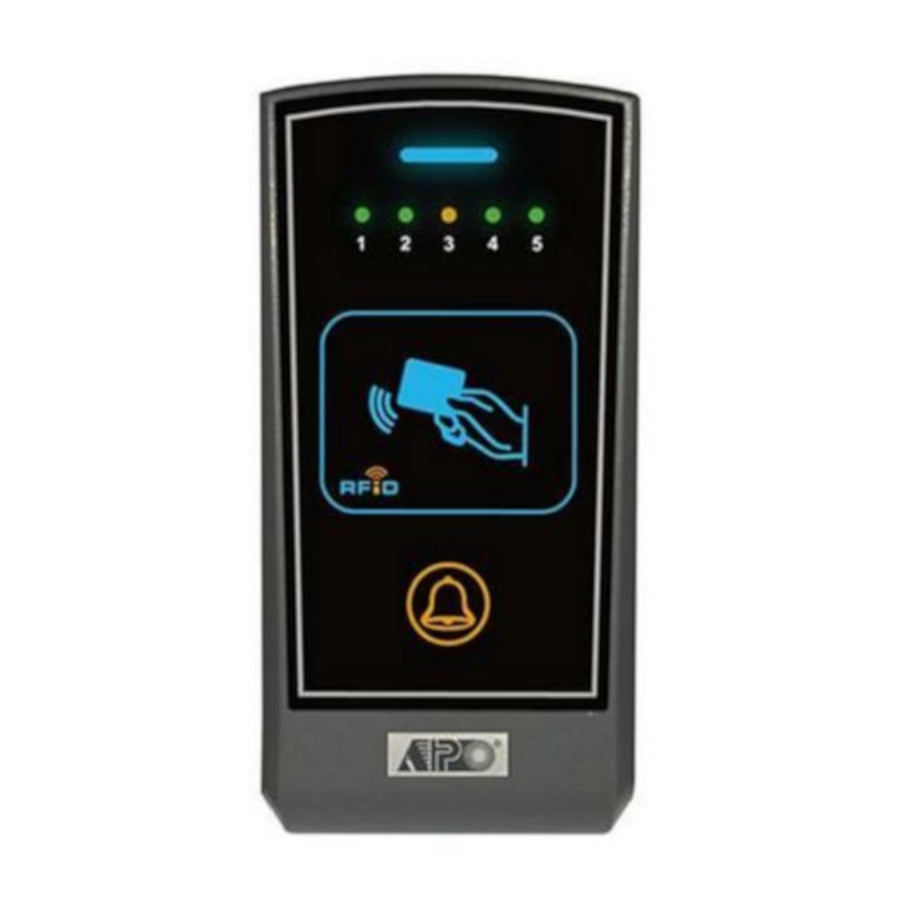

AR2808 is a weatherproof, self-contained access control reader designed to drive an electric door lock directly. It accommodates up to 500 proximity EM cards. Its output is compatible with Fail-safe or Fail-secure electric locks. The door lock striking timer is programmable. A built-in door chime relay contact is also available to operate an external low power door chime. It is a full featured compact RFID reader ideally suited for access control in a small office or home. The system employs a Solid State switch instead of a mechanical relay contact for the door lock strike. This gives longer service life and prevents the sabotage of opening the door with a strong magnet activating the output relay. AR-2808 is built-in with Data I/O bus for system expansion. Maximum of three optional card readers (AR-2802) can be connected with it to set up a multi-station access control system.
Features
- Proximity EM Card Reader with Door Bell Button
- Door Bell Button doubles as the programming button
- 5 LEDs show access group status and programming
- Low Profile Surface Mount Weatherproof Plastic Housing IP-55
- Operates with the most popular EM Cards or Key-fobs
- Self-contained, Stand-Alone Operation
- Built-in Data I/O Port Expandable for Multi-Station Operation
- Solid State Output for Long Life Door Strike Operation
- Relay Output for Operating Optional Door Bell
- Accommodates Up to 500 Users and 5 Super Users
- Self-Created Master Card, User Cards and Super User Cards
- Operating Voltage : 12VDC; 11-16VDC at 80mA (max)
- Operating Temperature : -20°C to +70°C
- Number of User Cards : 500 Self -Created Cards
- Number of Super User Cards : 5 Self-Created Cards
- Using Standard 125Khz Proximity EM Cards or Key-fobs
- Super User Card for Door Open, System Inhibit or Resets Inhibit
- Programmable Safety Lock-up for Unauthorized Trial
- Door Lock Timer : 1-60 Seconds Programmable
- Data I/O Bus for Optional Reader, 3 Max.
- Bell Button with Relay Contact (1A / 24VDC) for Optional Door Chime
- Solid State Output for Door Lock Strike, 3A / 16VDC
- Tamper Switch N.C. Dry Contact; 50mA/12VDC
- Weatherproof ABS Plastic Housing IP55 Indoor/Outdoor
- Dimensions : 119(H) X 60(W) X 23(D) mm
- Includes 2x RFID Cards, more available.
Compatible with AR-2802 for Multi-Station Operation
