Professional Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder

Available:
Sold out

SKU: CVR16PRO5

Category: Digital Video Recorders

Tags: Securview Victory Series

Professional Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder CVR16PRO5 Transform your existing low-resolution surveillance system into an Ultra HD AI system with the Securview Professional Series. Upgrade coaxial based...

Regular price $918.50 Sale $923.50

Quantity:

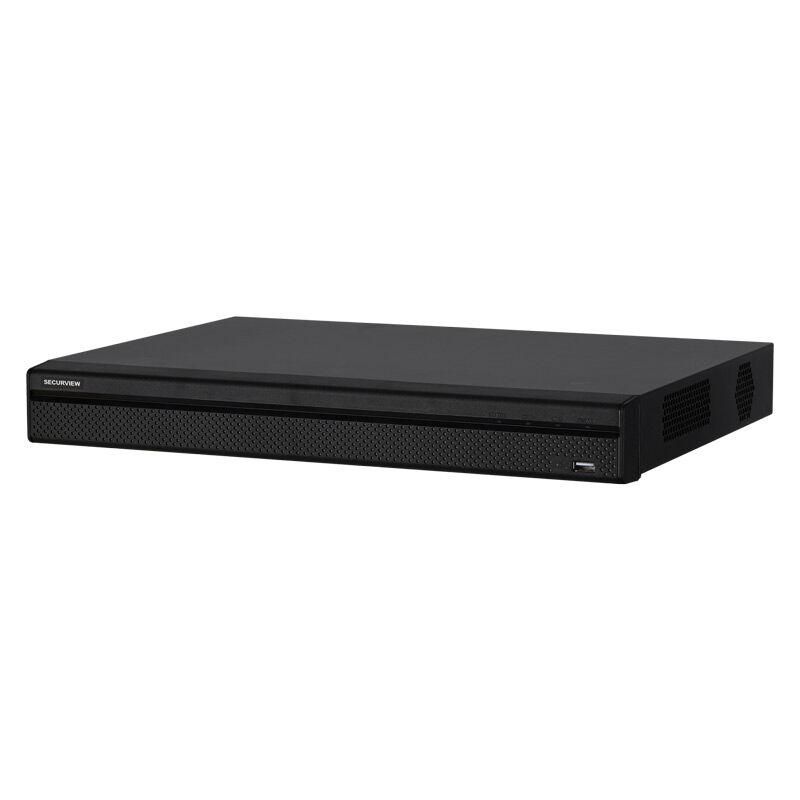

Professional Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder CVR16PRO5

Transform your existing low-resolution surveillance system into an Ultra HD AI system with the Securview Professional Series. Upgrade coaxial based systems to HDCVI (high definition composite video interface) and gain access to AI functionality*, 4K recording at 7fps and cross compatibility for IP, analogue and other coax technologies. These DVRs are fantastic for existing coax cable system upgrades and for upgrades on a budget that wish to use existing cameras.

Features:

  • Records 16 channels up to 8.0MP (3840 x 2160) at 7fps
  • Supports H.265+ high efficient video compression
  • 2 x SATA ports up to 16TB, max. 32TB HDD capacity
  • Support for HDCVI, Analogue and IP video inputs
  • Add 16 additional IP channels up to 8.0MP to allow a total of 32 cameras*
  • Identify people with up to 2 channels of face recognition (BNC inputs only)
  • AI person and vehicle detection using smart motion detection or intrusion/tripwire rules
  • Receive face recognition & people/vehicle detection alerts to your device
  • Alarm system integration with 16 channel input and 3 relay outputs
  • Configure iOS/Android remote view in seconds via QR code
  • HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output
  • Backup via external USB device or local network


*Addition of IP Cameras beyond 16 channels disables the DVR's AI / IVS functions.
**IP cameras with built-in AI cannot use AI functions on HDCVI DVRs.
*DVRs include 4 year warranty; HDDs include 3 year warranty

SPECIFICATIONS

General

  • Main Processor : Embedded Processor
  • Operating System : Embedded Linux
  • Video Input : 16 channel BNC
  • Audio In/Out : 4 channel input / 1 channel output (RCA)
  • Two-way Talk : Reuse channel 1 audio input/output

Cross Compatibility

  • Supported Video Inputs : HDCVI / HDTVI / AHD / Composite / IP
  • Coax Input Support : 16 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)
  • IP Input Support : 16 channels
  • IP Input Max. Resolution : 8.0MP
  • IP Input Max. Bandwidth : 128Mbps

Display

  • Video Output : 1 HDMI / 1 VGA
  • Display Resolution : 3840 x 2160 to 1280 x 720
  • Display Split : 1/4/8/9/16 (25 / 32 with IP extension mode enabled)
  • OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

  • Maximum Resolution : 8.0MP (3840 x 2160) / 4.0MP (2560 x 1440) / 1080p (1920 x 1080)
  • Frame Rate (Main) : 4K (1~7fps); 6.0MP (1~10fps); 5MP (1~12fps); 4MP/3MP (1~15fps) / 1080p (1 ~25fps)
  • Frame Rate (Sub) : 960H (1 ~15fps) / D1 (1~25fps)
  • Frame Rate (Third) : N/A
  • Video Compression : AI Coding / H.265+ / H.265 / H.264+ / H.264
  • Bit Rate : 32Kbps ~ 6144Kbps Per Channel
  • Record Modes : Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
  • Record Interval : 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

AI Functions

  • AI Functions : Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)

Face Recognition

  • Performance (Face Recognition) : Max. 12 face pictures per second (modeling and comparing), Approx. 2 channels face recognition (BNC inputs only) (Performance varies depending on camera and resolution)
  • Stranger Mode : Detect strangers face (not in database)
  • AI Search (Face Recognition) : Up to 8 target face images at the same time
  • Database Management : Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
  • Database Application : Each database can be applied to video channels independently
  • Trigger Events (Face Recognition) : Buzzer, Voice Prompts, Email, snapshot, Recording, Alarm Out, PTZ activation, etc.

Perimeter Protection

  • Performance (Perimeter Protection) : 2 Channels, 10 IVS rules for each Channel
  • AI Search (Perimeter Protection) : Search by target classification (Human, Vehicle)
  • Object Classification (Perimeter Protection) : Human / vehicle secondary recognition for tripwire and intrusion

Smart Motion Detection (SMD+)

Performance (SMD+) : 16 Channels

AI Search (SMD+) : Search by target classification (Human, Vehicle)

Features

  • Alarm Input / Output : 16 channel input / 3 relay output
  • Trigger Events : Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
  • Video Detection : Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
  • Playback Sync : 1/4/9/16
  • Search Modes : Time /Date, Alarm, MD and Exact Search (accurate to second)
  • Backup Modes : USB Device / Network

Network

  • Ethernet : 1x RJ-45 port (1000M)
  • Network Functions : HTTP, HTTPS, IPv4/IPv6, TCP/IP, Wi-Fi, 3G/4G, SNMP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server, P2P, IP Search
  • Max. User Access : 128 users
  • Remote View : iOS (iPhone, iPad); Android devices

Storage

  • Internal HDD : 2 x SATA ports up to 16TB, max. 32TB HDD capacity
  • USB Interface : 2 ports: 1x USB2.0, 1x USB3.0
  • Auxiliary Inputs : 1 x RS485 port (for PTZ)

Environment

  • Power Supply : 12VDC / 5A
  • Power Consumption : <15W (without HDD)
  • Operating Environment : -10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH
  • Rackmountable : No
  • Rackmount Units : 1RU
  • Dimensions : 375mm x 288mm x 53mm
  • Weight : 1.8kg (without HDD)
