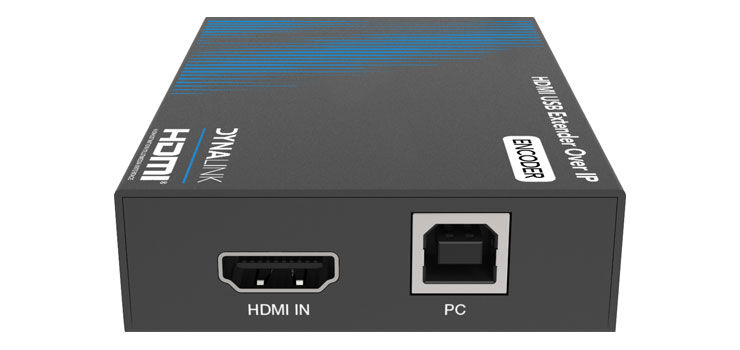

Dynalink A3110 HDMI USB KVM Over IP Extender - Encoder
Regular price
$185.00
Sale
$204.90
Overview
Designed to extend HDMI signals over distances up to 150m using Cat6/6a cabling. In addition it also allows USB peripherals to control a connected computer from the receiver end. Infra-red control is relayed via the included IR emitter and target. The cable bandwidth allows for zero-delay operation with HDMI resolutions up to 1080p @ 60Hz. Power is via the included power supply.
Designed to be used with single or multiple A3111 HDMI Over IP Decoders - see accessories listed below. Only a single encoder can be used on a network.
Box Contents
1× HDMI over IP Extender (Encoder)
1× IR Blaster cable (1.5ms)
1× 20-60KHz IR Receiver cable (1.5m)
1× 5V/1A Power Supply
1× User Manual
Features
- Extend both HDMI signal plus IR control & USB peripherals
- Transmission up to 150m over Cat6/6a UTP cabling
- Ideal for remote operation of PC equipment
- HDCP 1.4 compliant
- 6.75Gbps video bandwidth
- H.265 encoding/decoding
- Supports USB 1.1 KVM pass-through
- Supports standard 1000MBps network switch/router
Specifications
Technical
- HDCP Compliance: HDCP 1.4
- USB Version: USB 1.1
- Video Bandwidth: 6.75Gbps
- Resolution/Distance: 1920x1200 @60Hz CAT 5e/6 cable 150 meters
- Resolution/Cable Length : 1920x1200 @60Hz HDMI IN / OUT 15 meters
Video Resolution
- Input: Up to 1920×1200@60Hz
- Output: Up to 1080P@60Hz
Audio Formats
- Input: LPCM 2.0CH 32KHz/44.1KHz/48KHz
- Output: LPCM 2.0CH 48KHz
- IR Frequency: 20Hz ~ 60KHz
- Compression Technology: H.265
- Request for Switcher/Router: Support 1Gbps, Support DHCP
- Colour Depth: 8-bit,10-bit,12-bit
- Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- ESD Protection: Human body model ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
- Inputs: 1×HDMI IN (Type A, 19-pin female)
- Outputs: 1×LAN (RJ45 connector)
- Control: 1×IR OUT (3.5mm Stereo Mini-jack), 1×USB (USB-B, female)
Mechanical
- Housing: Metal Enclosure
- Dimensions: 67W × 91.5D × 17.5Hmm
- Weight: 150g
- Power Supply Input: AC100 - 240V 50/60Hz Output: DC 5V/1A
- Power Consumption: 2.9W
- Operation Temperature: -10°C to 50°C
- Storage Temperature: -20°C to 60°C
- Relative Humidity : 20 to 90% RH (non-condensing)
