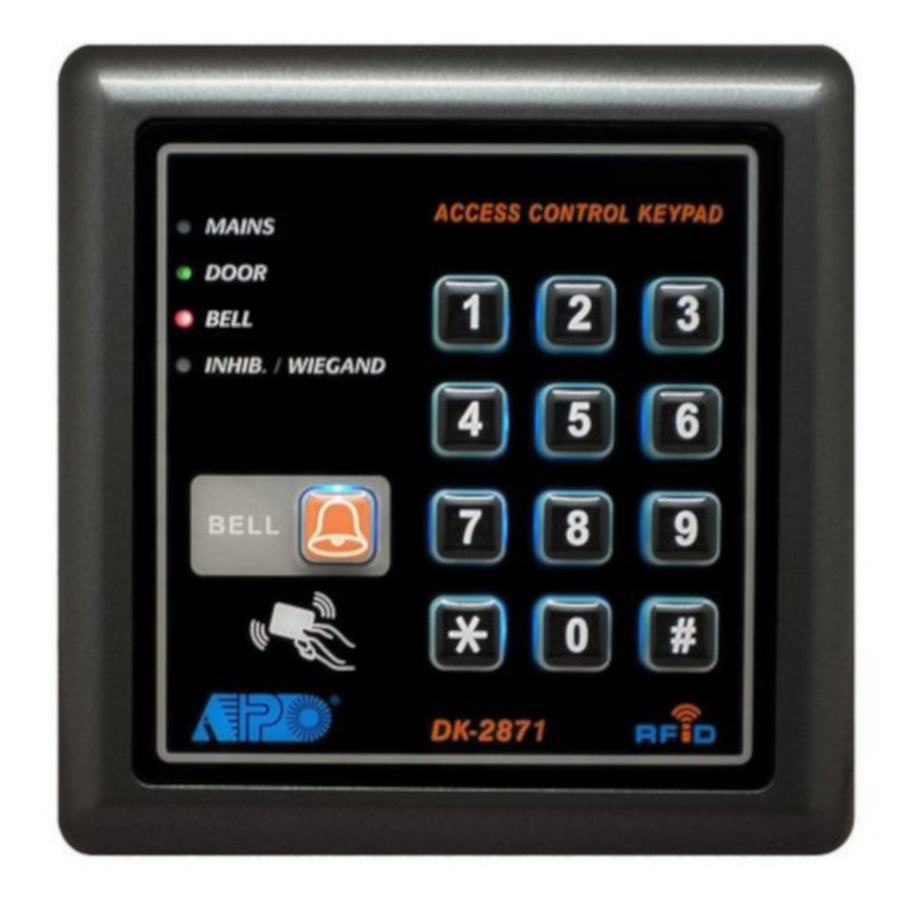

Access Control Keypad MK2
Regular price
$93.50
Sale
$117.98
The inbuilt RFID card reader allows for a smart card system to read the data from the card and output it as the entry of the PIN/User Code.These functionalities and the PINs, RFID Cards, etc. are all programmable through the unit to suit your needs.
This makes the access control keypad an ideal keypad for Door Strike or Alarm Arm-Disarm Control System. Door bell button. Backlit quality key buttons are made of epoxy coated silicone rubber to make them more durable so key numbers will not fade with use. 117x117x28mm. 12Vdc
Two RFID Cards are included.
This access control keypad is a self-contained weatherproof keypad combining the functions of a digital keypad and a proximity RFID card reader into one unit. It can work independently as a stand alone entry system or together with an existing alarm system to enable high security zone access.The inbuilt RFID card reader allows for a smart card system to read the data from the card and output it as the entry of the PIN/User Code.These functionalities and the PINs, RFID Cards, etc. are all programmable through the unit to suit your needs.This makes the access control keypad an ideal keypad for Door Strike or Alarm Arm-Disarm Control System.
The unit features a backlit keypad to make the keypad more visible for users when operating in a dark area or at night. The quality key buttons are made of epoxy coated silicone rubber to make them more durable so key numbers will not fade with use. The unit also contains a tamper switch to protect the keypad from an attacker. Two RFID Cards are included.
- Use as a standalone keypad or card reader for zone entry
- Integrate with an existing alarm system
- Program as keypad only, card only, or both to gain access
- Multiple user PIN and card code programming
- One Time Codes and Codes with time limit function
- Control door strikes directly. Includes egress (exit button) connection.
- Programmable Timers for Door Strike, Alarm Arm/Disarm control
- Relay switched NO/NC output (Switch 24V 5A max)
- Door bell press button with relay output
- Built-in tamper switch
- Backlit Heavy-Duty Long-Life Keypad
- Audible confirmation tones
- IP55 Ingress Protection
- Operating Voltage: 12V DC (11-15V DC)
- Operating current: :60mA (quiescent) to 95 mA (two relays active)
- Operating Temperature: -20°C - 70°C
- Environmental Humidity: 5-95% relative humidity (non condensing)
- Working Environment: Weather Resistant IP55
- Number of Users: 1000 (PINs and/or Cards)
- Proximity Card: Standard EM Card, 125kHz
- Number of visitor codes: 50, programmable for one time or with time limit
- Output contact ratings:
- Output Relay: N.C. & N.O. dry contact, 5A/24V DC max
- Door Bell Relay: N.O. dry contact, 1A/24V DC max
- Tamper Switch: N.C. dry contact, 50mA/24V DC max
- Dimensions: 117 x 117 x 28mm
- Weight: 180g
- Housing: ABS plastic box
