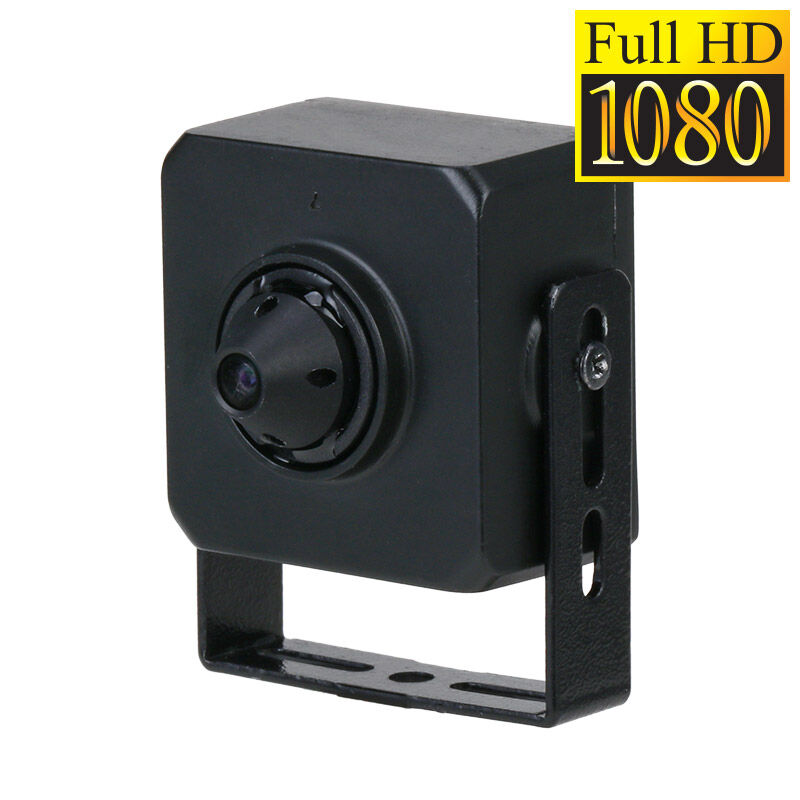

Pinhole Series 2.0MP Fixed WDR Pinhole Camera
Regular price
$227.37
Sale
$232.37
The VSIPPH-2S2 pinhole camera is designed for discreet/covert surveillance applications and is ideal for use at controlled ingress points, in shelf surveillance, vehicles, ATMs and more.
Camera Features:
- Stream up to HD 1080p at 25fps
- Fixed 2.8mm lens with 108° field of view
- True WDR (120dB)
- Auto electronic day/night & 2D digital noise reduction
- Discreet pinhole housing for covert surveillance
- IVS functions including motion detection, tripwire & intrusion
Specifications
Camera
- Image Sensor 1/3” 2.0 Megapixel Progressive Scan CMOS
- Max. Resolution 2.0 Megapixel
- Effective Pixels 1920 (H) x 1080 (V)
- RAM / ROM 128MB / 128MB
- Ultra Low Light Colour Yes
- Min Illumination Colour: F2.0 0.01 lux (1/3s)
- S/N Ratio >56dB
- Infrared No Infrared System N/A
Lens
- Lens Type Fixed
- Lens / Iris 2.8mm F2.0 Fixed lens
- Field of View Horizontal: 96°, Vertical: 55°
- Focus Fixed / 0.6m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
- Detect (25px/m) 61m
- Observe (63px/m) 24.4m
- Recognise (125px/m) 12.2m
- Identify (250px/m) 6.4m
Video
- Resolution 1080p (1920 x 1080) to CIF (352 x 288)
- Frame Rate (Main) 1080p (1 ~ 25fps)
- Frame Rate (Sub) 704 x 576@(1 ~ 25fps)
- Frame Rate (Third) N/A
- Video Compression H.265 / H.264 / MJPEG (sub stream)
- Bit Rate H.265: 3 Kbps ~ 6144 Kbps / H.264: 3 Kbps ~ 6144 Kbps
- Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
- Day/Night Auto (Electronic) / Colour / B&W
- Lighting Compensation BLC / HLC / WDR (120dB)
- Smart Scene Adaptive (SSA) N/A
- White Balance Auto / Natural / Street Lamp / Outdoor / Manual
- Gain Control Auto/ Manual
- Noise Reduction 3D DNR
- Picture Control N/A
IVS
- IVS Yes
- Intelligent Functions Tripwire, Intrusion, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
Network
- Ethernet RJ45 (10/100 Base-T)
- Protocol IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
- Streaming Method Unicast / Multicast
- Max. User Access 20 Users
- RTMP Support No
Interface
- Video Interface N/A
- Audio Interface1 Input, 1 Output (RCA)
- Alarm Interface N/A
- RS485 N/A
- Edge Storage NAS / Local PC
- Interoperability ONVIF Profile S / API
Environmental
- Power Supply 12VDC / Non POE
- Power Consumption <1.5W
- Operating Conditions -40° ~ +60° C / Less than 95% RH
- Ingress Protection N/A
- Weather Resistance No
- Vandal Resistance N/A
- Series Pinhole Series
- Camera Type Pinhole
- Housing Metal
- Pan/Tilt/Rotation N/A
- Tri-Axis Mounting No
- ePoE No
- Dimensions 31mm x 31mm x 30mm
- Net Weight 0.138kg
